Products 丨 Versatile Centrifuge

Velocity 14R Pro

Velocity 14R Pro Versatile Centrifuge

The Velocity 14R Pro protects your sample by refrigeration. It features a compact footprint and provides the flexibility to alternate from micro-volume centrifugation to medium-volume centrifugation at an impressive maximum speed of 14,000 RPM / 21,780xg.

Auto Rotor Recognition

Automatic rotor recognition and confirmation once centrifugation has commenced, including rotational speed calculation and optimum temperature control. Furthermore new rotors can be easily loaded onto the on-board database as they are introduced.

Auto-Lock Rotor

With the Velocity 14R Pro you simply need to place the rotor onto the drive shaft. The auto lock and secure mechanism performs the rest. Once centrifugation is complete, simply lift the rotor off the drive shaft. Quick, easy, efficient and safe.

auto lock rotor ver2.2

High imbalance tolerances

Innovative motor engineering and mounting (including a flexible drive shaft) allow for greater imbalance tolerances, so much so that samples can be balanced simply by eye. No more weighing – just fill tubes or bottles to within 5mm of each other.

Fast Acceleration And Deceleration

The innovative high-torque drive technology effortlessly accelerates even the heaviest rotors to terminal velocity quickly and efficiently. A full load will achieve maximum velocity within a few minutes. 9 pre-set acceleration and 10 pre-set deceleration profiles (including coasting deceleration) ensure the best separation, even for the most delicate density gradients.

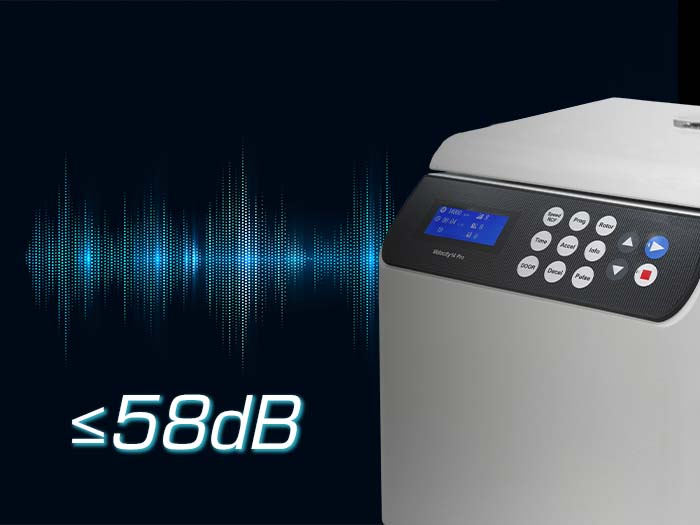

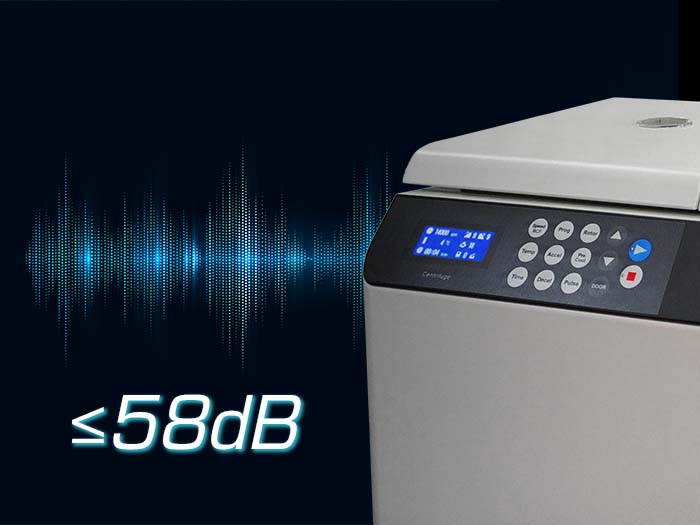

Quiet Operation

Noise abating insulation in the console, including lower noise fans, combine to reduce the audible operating noise to ≤58dB.

Powerful Refrigeration​

A powerful, non-CFC compressor, cools the chamber quickly whilst maintaining the rotor at a set temperature during centrifugation. The twin cooling fans – one for the compressor and motor respectively – dissipate heat quickly to improve cooling efficiency and extend the motor lifespan.

Powerful Refrigeration

Specification

Model Velocity 14R Pro
Maximum Speed 14,000RPM
Maximum RCF 21,780 xg
Maximum Capacity 300 ml (6 x50 ml)
Driving System Brushless DC Motor
Acceleration / Deceleration mode 1-9 stages
Temperature Setting Range -20°C to +40°C
Refrigerant R134a
Timer  Running time from 1 min to 99 hours 59 mins. or “HOLD function”
Program memory 9 Programs
Dimensions 560 x 500 x 380 mm (WxDxH)
Weight Approx. 60 kg
Main Power 220V Single phase, ~220-240V±10%, 50/60Hz±1Hz, 1500VA 110V Single phase, ~110V ±10%, 60Hz±1Hz, 1500VA
Ordering Number 0034279 (220V 50/60Hz) 0034280 (110V 60Hz)
